Conceptpower DPA 40–200 kW
Custom Quote

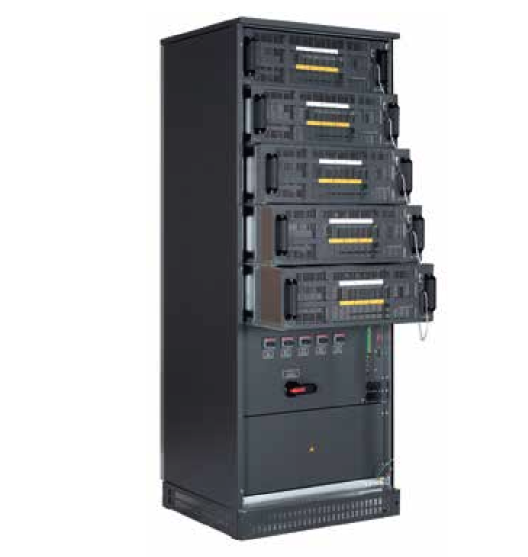

True modular UPS system for critical applications
A modular three-phase UPS system providing 40–200 kW per cabinet, scalable up to 1.2 MW. Built on Decentralized Parallel Architecture (DPA™), each module works independently to eliminate single points of failure. Hot-swappable modules, high efficiency (up to 96%), and flexible battery management make it ideal for data centers and high-density computing.
The Conceptpower DPA is built on ABB’s Decentralized Parallel Architecture (DPA™), where each UPS module operates independently with its own static bypass, rectifier, inverter, logic control, display, and charger. This eliminates single points of failure and maximizes power availability.
- Provides continuous, clean, and reliable power for critical applications.
- Supports safe-swap modularity, allowing modules to be added or removed during operation without bypassing or interrupting the critical load.
- Available in 40–200 kW systems (1–5 modules per cabinet), and cabinets can be connected in parallel up to 30 modules for a total of 1.2 MW.
- High efficiency and flexible battery configurations reduce total cost of ownership (TCO) while improving energy efficiency.
- Designed for scalability, making it future-ready for growing IT infrastructure.
Additional information
| Rating | 10-50KVA, 100-800KVA |
|---|---|
| Phase | Three Phase |
| Power Factor: | 0.99 (near unity) |
| Output Rated Power: | 40 kW per module, up to 200 kW per cabinet |
| Configurable: | Modular (1–5 modules per cabinet, cabinets parallelable) |
| Display: | LCD display per module + LED indicators |
